The "Dynamism" Attachers
The Dynamism Attachers are handlers stored in the WFS "Dynamism"
script. They are handlers that attach behaviors to (dynamic or static)
sprites at run-time.
The easiest way to generate code to attach behaviors dynamically to
sprites is to create a static model of the sprite and attach the behavior
to the sprite via the static drag and drop method. Then use a Script
Writer public handler (wfsWriteBehaviorCode
is perhaps most relevant here) to generate code for what you want to
do. Then detach the behavior from the static sprite, insert the generated
code in your code, and run it. This saves you having to configure most
of the parameters of the below handlers.
The problem with the below handlers is that you have to specify a lot
of parameters, ie, they are some work to use. Which is why the Script
Writer handlers were written: to make writing WFS dynamic code much
easier. Pay special attention to wfsAttachBehavior, below.
wfsAttachBehavior is a robust handler that attaches
any script to any sprite, whether the sprite is dynamic or not, and
initializes the behavior, whereas all the other handlers listed above
are for attaching a specific behavior. So you are best to get
to know how to use wfsAttachBehavior.
wfsAttachBehavior does the following:
- creates a dynamic behavior object,
- runs the behavior's 'on new' handler, if it exists
- initializes the Property Description List properties, if there are
any, configurably
- initializes, configurably, any non PDL properties you want initialized
before the beginSprite handler runs (if it exists)
- and runs the beginSprite handler, if the behavior has one.
wfsAttachBehavior (aScriptName, aSprite, aOverride)
FUNCTION
This attaches a behavior to a sprite. Specifically, it attaches the
behavior named aScriptName to aSprite. This is a general-use handler.
- wfsAttachBehavior first calls the 'new' handler, if the script has
one.
- wfsAttachBehavior then initializes the Property Description List
properties of the behavior, if any exist, to the default values (your
Property Description List handlers must define default values for
your PDL properties) unless you specify the optional aOverride parameter.
The aOverride parameter allows you to give the PDL properties (and/or
other properties of the script not in the PDL) initial values.
- wfsAttachBehavior then calls the beginSprite handler of the script,
if it has one.
- wfsAttachBehavior then attaches the script to the sprite.
- wfsAttachBehavior then returns a reference to the script.
You can use wfsAttachBehavior to attach behaviors to dynamic or static
sprites. You can use wfsAttachBehavior rather than any of the below
attacher handlers; they simply make a call to wfsAttachBehavior, as
you can see if you look at the WFS code in the "Dynamism"
script.
I am indebted to Robert Tweed for the first version of this code: thanks
Robert!
PARAMETERS
aScriptName:
The string name of the behavior you want to attach to aSprite. You must
have a copy of this behavior in a Cast for this handler to work properly.
aSprite: This
is the sprite channel (integer) in which the sprite is located that
you want to attach the behavior to. Alternatively, it can be a reference
to the sprite as in sprite(4)
aOverride:
This parameter is optional. Use it to override default values of PDL
properties, if you want. aOverride is a property list. Specify the property
names you want to override and a value for each of them. Example:
[#pSomeProperty: "text1", #pSomeOtherProperty: "text2",
#pnonPDLprop:5]
You can also include non PDL properties in aOverride. If you don't specify
any aOverride parameter, then if theScriptName contains a getPropertyDescriptionList
handler, all the PDL properties will be initialized to the default values
specified in the getPropertyDescriptionList handler.
RETURN VALUE
Returns 0 if aSprite is not an integer or a reference to a sprite.
Returns a reference to the script, otherwise. So that if you run
theResult=wfsAttachBehavior("My Script", 78)
and the attachment was successful (ie, "My Script" exists
and there is a sprite 78) and, say, "My Script" contains property
pMyProperty, then theResult.pMyProperty tells you the value of pMyProperty.
EXAMPLE
theResult=wfsAttachBehavior("My Script", 78)
The above example attaches the "My Script" behavior to sprite
78. If there is an 'on new' handler, it runs. If there are PDL properties
in "My Script", they are initialized to their default values.
If there is a beginSprite handler, it is run.
theResult=wfsAttachBehavior("My Script", 78, [#pMyProperty1:45])
The above example does the same as the first example except that, supposing
"My Script" contains a property called pMyProperty1, it is
initialized to 45 rather than whatever the pMyProperty1 default value
is (if pMyProperty1 is in the getPropertyDescriptionList handler).
wfsAttachMenuVerb (theElementSpriteNum, OpenAMenu, NameOfMenuToOpen,
MenuOpeningLocation, MenuAbsoluteLocH, MenuAbsoluteLocV, Highlight,
HorizontalLeftOffset, HorizontalRightOffset, HighlightLocZOffsetText,
CloseMenuOnMouseEvent)
FUNCTION
This attaches the "Menu Verb"
behavior to the theElementSpriteNum and configures it according to the
parameters. You need a copy of the "Menu Verb" behavior in
your cast for this to work.

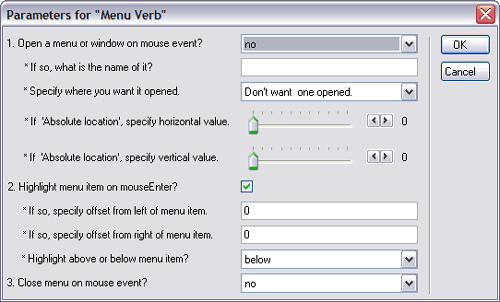

When you attach the "Menu Verb"
behavior to a sprite via the non-dynamic method of dragging and dropping
the behavior onto a sprite in the Score, you see the following Parameter
Dialog Box (shown below with the default values):
This appears as a result of the getPropertyDescriptionList handler
defined in the Menu Verb behavior code.
What you are doing when you specify the below parameters in wfsAttachMenuVerb
is specifying these same properties at the command-line level rather
than in the above Parameter Dialog box. Additonally, you have to specify
theElementSpritenum, which is the sprite you want to attach the behavior
to.
PARAMETERS
You have to specify theElementSpriteNum, but concerning the rest of
the parameters, you only have to specify those that differ from the
default value.
theElementSpriteNum:
This is the spritenum of the sprite to which you want the "Menu
Verb" behavior attached. The sprite should be an element of
a menu.
OpenAMenu: Specify
whether you want a window/menu opened or not and, if so, the mouse event
to open it.
Parameter name in code: pWFSOpenAMenu
Range: "no", "mouseEnter",
"mouseDown", "mouseUp", "mouseLeave",
"rightMouseDown"
Default: "no"
NameOfMenuToOpen:
Specify the name of the multi-sprite you want opened, or ""
if no window/menu is to be opened.
Parameter name in code: pWFSNameOfMenuToOpen
Range: the (string) name of any multi-sprite
Default: the empty string, ie, ""
MenuOpeningLocation:
Specify where you want the window/menu opened or "Don't want one
opened." if no window/menu is to be opened.
Parameter name in code: pWFSMenuOpeningLocation
Range: "Don't want one opened.",
"Do not move it, just open it.", "Center it.", "Open
it where mouse is.", "Absolute location."
Default: "Don't want one opened."
MenuAbsoluteLocH: If
you specified MenuOpeningLocation="Absolute location." then
this integer parameter is meaningful and describes the horizontal component
of where the menu/window will be opened.
Parameter name in code: pWFSMenuAbsoluteLocH
Range: integer
Default: 0
MenuAbsoluteLocV:
If you specified MenuOpeningLocation="Absolute location."
then this integer parameter is meaningful and describes the vertical
component of where the menu/window will be opened.
Parameter name in code: pWFSMenuAbsoluteLocV
Range: integer
Default: 0
Highlight: This
boolean specifies whether you want the menu item highlighted on mouseEnter.
If so, then you must have a copy of the two 'Menu item highlight' WFS
library elements in a Cast. If Highlight=1, then WFS auto creates a
'Menu item highlight vector' sprite
(concerning dynamic sprites) and attaches the 'Menu
item highlight' behavior to it.
Parameter name in code: pWFSHighlight
Range: boolean
Default: 1
HorizontalLeftOffset:
Specify the number of pixels the highlight will start from the left
of the menu item. Postive values start the highlight further to the
left than the menu item. Negative values make the highlight start to
the right of the left side of the menu item. The value of 0 makes the
highlight start at the same left point as the menu item itself.
Parameter name in code: pWFSHorizontalLeftOffset
Range: integer
Default: 0
HorizontalRightOffset:
Specify the number of pixels the highlight will end from the right of
the menu item. Postive values end the highlight further to the right
than the menu item. Negative values make the highlight end to the left
of the right side of the menu item. The value of 0 makes the highlight
end at the same right point as the menu item itself.
Parameter name in code: pWFSHorizontalRightOffset
Range: integer
Default: 0
HighlightLocZOffsetText:
This has no effect unless Highlight=TRUE. In which case you specify
here whether you want the highlight (which is a copy of the "Menu
item highlight" vector shape) placed above or below the menu
item itself. In other words, what happens when a menu item is highlighted
is a copy of the "Menu item highlight" vector image is positioned
either above or below the menu item itself. If your menu items have
the "background transparent" ink, then you will probably want
to specify "below" here. Otherwise, specify "above",
or the highlight will not be visible.
Parameter name in code: pWFSHighlightLocZOffsetText
Range: "below", "above"
Default: "below"
CloseMenuOnMouseEvent:
Determines whether or how the menu will be closed once the user triggers
a specific mouse event. See the documentation on the Menu
Verb behavior for more information on this parameter. Specifically,
look at the "Close menu on mouse event? " parameter. This
is the same parameter.
Parameter name in code: pWFSCloseMenuOnMouseEvent
Range: "no", "mouseEnter",
"mouseDown", "mouseUp", "mouseLeave",
"rightMouseDown"
Default: "no"
EXAMPLE
theScript=wfsAttachMenuVerb(8, "mouseEnter", "my menu", \
"Do not move it, just open it.", \
0, 0, TRUE, 0, 0, "below", "mouseUp")
The above example attaches the "Menu Verb" behavior to sprite
8. On "mouseEnter" of sprite 8, the "my menu" menu
will be opened in the location where it was authored ("Do not move
it, just open it."). Since we did not specify "Absolute location."
for where we want the menu opened, the next two parameters (0,0) are
irrelevant (but must be specified). On mouseenter, the menu will be
highlighted (TRUE) and the highlight will be as wide as the menu item
itself (0,0). The highlight will appear "below" the menu item.
On "mouseUp" of the menu item, the menu will be closed.
THE EASIEST ROUTE
If you want to attach the Menu Verb behavior
to a sprite at run-time, use one of the Script
Writer handlers to generate the code to do so. If you don't, you
have to configure all the above parameters yourself.
wfsAttachCloseMyWindow (theElementSpritenum, CloseMyWindowEvent)
FUNCTION
This attaches the "5: Close My Window"
behavior to the theElementSpriteNum. So theElementSpriteNum should be
the spritenum of a sprite that is an element of a window. When a sprite
has this behavior attached to it, it closes the window it is an element
of when CloseMyWindowEvent is triggered. You should not have to call
wfsAttachCloseMyWindow if you use the handlers in the Script
Writer script.
PARAMETERS
theElementSpriteNum:
This is the spritenum of the sprite to which you want the "5: Close
My Window" behavior attached. The sprite should be an element of
a window.
CloseMyWindowEvent
:This is the event you want to close the window.
Parameter name in code: pWFSCloseMyWindowEvent
Range: "mouseEnter", "mouseDown",
"mouseUp" and "mouseLeave"
Default: "mouseUp"
RETURN VALUE
Returns 0 if theElementSpriteNum is not an integer or a reference to
a sprite. Returns a reference to the script, otherwise. So that if you
run
theResult=wfsAttachCloseMyWindow(elementSpriteNum, "mouseUp")
and the attachment was successful (ie, the "5: Close My Window"
behavior exists and there is a sprite in channel elementSpriteNum) then
theResult.pWFSCloseMyWindowEvent tells you the value of pWFSCloseMyWindowEvent.
EXAMPLE
theScript=wfsAttachCloseMyWindow(7, "mouseUp")
Attaches the "5: Close My Window" behavior to sprite 7. The
"5: Close My Window" behavior will close the window sprite
7 is an element of (on mouseUp).
wfsAttachCloseAWindow(theElementSpritenum, CloseAWindowEvent, NameOfWindowToClose)
FUNCTION
wfsAttachCloseAWindow attaches the "Close
A Window" behavior to a sprite. The sprite does not have to
be an element of a multi-sprite. The "Close A Window" behavior
closes the multi-sprite specified by NameOfWindowToClose.
PARAMETERS
theElementSpriteNum:
The spritenum of the sprite to which you want the behavior attached.
CloseAWindowEvent:
The mouse event you want to trigger the closing of the window.
Parameter name in code: pWFSCloseAWindowEvent
Range: "mouseEnter", "mouseDown",
"mouseUp" and "mouseLeave"
Default: "mouseUp"
NameOfWindowToClose:
The (string) name of the window you want the sprite to be able to close.
Parameter name in code: pWFSNameOfWindowToClose
Range: name (string) of a multi-sprite
or the empty string
Default: the empty string, ie, ""
EXAMPLE
theScript=wfsAttachCloseAWindow(9, "mouseUp", "my window")
Attaches the "Close A Window" behavior to sprite 9. On mouseUp
of sprite 9, "my window" will be closed.
RETURN VALUE
Returns 0 if theElementSpriteNum is not an integer or a reference to
a sprite. Returns a reference to the script, otherwise. So that if you
run
theResult=wfsAttachCloseAWindow(parameters)
and the attachment was successful (ie, the "Close A Window"
behavior exists and there is a sprite in channel elementSpriteNum) then
theResult.pWFSNameOfWindowToClose tells you the value of pWFSNameOfWindowToClose.
wfsAttachHandle (theElementSpriteNum, ConstrainingWindow, ConstrainLeft,
ConstrainTop, ConstrainRight, ConstrainBottom)
FUNCTION
This handler attaches the "6: Handle"
behavior to a window element. This behavior allows the user to then
drag the whole window around by the handle sprite. You must have a copy
of the "6b: Handle" behavior in
a cast for this to work. If this behavior is to work properly, there
must be a copy of the "4: Window/Menu
Element" behavior attached to theElementSpritenum when the
user mouses down on the sprite. The parameters allow you to specify
a constraining window. The multi-sprite that the "6:
Handle" behavior is attached to will have its movement constrained
within a rectangle you define by ConstrainLeft, ConstrainTop, ConstrainRight,
ConstrainBottom. Positive values are like margins on a page. Negative
values enlarge the margins past the constraining window.
PARAMETERS
theElementSpriteNum:
The spritenum of the window element to which you want the behavior attached.
ConstrainingWindow:
The name of a multi-sprite that will constrain the movement of the multi-sprite
the behavior is part of. Specify "" if you want no constraint.
You can specify two special values: "stage" or "parent".
If you specify "stage" then the multi-sprite will be constrained
by the rectangle you define (by the remaining parameters) relative to
the stage. Putting in four 0 values, for instance, in the remaining
parameters would constrain the multi-sprite to the stage. If you specify
"parent" then the multi-sprite will be constrained by its
parent, if it has one.
Parameter name in code: pWFSConstrainingWindow
Range: name (string) of a multi-sprite,
or the empty string, or "stage" or "parent"
Default: the empty string, ie, ""
ConstrainLeft:
An integer. Left margin (relative to constraining window). Positive
values are like margins on a page. Negative values enlarge the margins
past the constraining window.
Parameter name in code: pWFSConstrainLeft
Range: integer
Default: 0
ConstrainTop:
An integer. Top margin (relative to constraining window). Positive values
are like margins on a page. Negative values enlarge the margins past
the constraining window.
Parameter name in code: pWFSConstrainTop
Range: integer
Default: 0
ConstrainRight:
An integer. Right margin (relative to constraining window). Positive
values are like margins on a page. Negative values enlarge the margins
past the constraining window.
Parameter name in code: pWFSConstrainRight
Range: integer
Default: 0
ConstrainBottom:
An integer. Bottom margin (relative to constraining window).Positive
values are like margins on a page. Negative values enlarge the margins
past the constraining window.
Parameter name in code: pWFSConstrainBottom
Range: integer
Default: 0
EXAMPLES
theScript=wfsAttachHandle(8, "my window", 10, 40, -300, -200)
The above would attach the "6: Handle"
behavior to sprite 8. Whatever multi-sprite sprite 8 was an element
of would now be draggable aroundable by sprite 8. The multi-sprite would
be constrained in its movement relative to a multi-sprite named "my
window". The multi-sprite that sprite 8 was an element of could
be dragged no further left than 10 pixels to the right of the left border
of "my window". And so on concerning the other borders.
theScript=wfsAttachHandle(8, "stage", 0,0,0,0)
The above would constrain the multi-sprite (that sprite 8 is an element
of) to the stage.
theScript=wfsAttachHandle(8, "parent", 0,0,0,0)
The above would constrain the multi-sprite that sprite 8 is an element
of to moving within the background of its parent (if it has one). If
it doesn't have a parent, then there will be no constraint.
RETURN VALUE
Returns 0 if theElementSpriteNum is not an integer or is not a reference
to a sprite. Returns a reference to the script, otherwise. So that if
you run
theScript=wfsAttachHandle(parameters)
and the attachment was successful (ie, the "6: Handle" behavior
exists and there is a sprite in channel elementSpriteNum) then theScript.pWFSConstrainingWindow
tells you the value of pWFSConstrainingWindow.
wfsAttachDragElement (theElementSpriteNum, ConstrainToWindow, ConstrainLeft,
ConstrainTop, ConstrainRight, ConstrainBottom)
FUNCTION
This handler attaches the "Drag Element"
behavior to an element. This behavior allows the user to then drag the
element around. You must have a copy of the "Drag
Element b" script in a cast for this to work. If this behavior
is to work properly, there must be a copy of the "4:
Window/Menu Element" behavior attached to theElementSpritenum
when the user mouses down on the sprite. That is what makes it an 'element'.
The parameters allow you to constrain movement within a rectangle. The
sprite that the "Drag Element"
behavior is attached to will have its movement constrained within a
rectangle you define by ConstrainLeft, ConstrainTop, ConstrainRight,
ConstrainBottom. Positive values are like margins on a page. Negative
values enlarge the margins past the constraining window, which is the
window or menu the element is part of.
PARAMETERS
theElementSpriteNum:
The spritenum of the element to which you want the behavior attached.
BringElementToFrontWhenDragging:
This boolean determines whether the element is brought to front on mousedown
(TRUE) or not (FALSE). Whether the window it's part of is brought to
front depends on the configuration of the Window Manager.
Parameter name in code: pWFSBringElementToFrontWhenDragging
Range: boolean
Default: 1
ConstrainToWindow:
A boolean that determines whether the motion of theElementSpriteNum
will be constrained within a rectangle defined by ConstrainLeft, ConstrainTop,
ConstrainRight, and ConstrainBottom. Setting ConstrainToWindow=1 and
putting in four 0 values, for instance, in the remaining parameters
would constrain the element to moving within the window or menu it is
part of.
Parameter name in code: pWFSConstrainToWindow
Range: boolean
Default: 0
ConstrainLeft:
An integer. Left margin (relative to constraining window). In this parameter
and the remaining three parameters, positive values are like margins
on a page. Negative values widen the margins past the boundary of the
constraining window. The margins are relative to the background sprite
of the window which, by WFS convention, is the sprite below the manager.
So, for example, setting ConstrainLeft to 0 would make it so that you
couldn't move theElementSpriteNum any further left than the left border
of the window theElementSpriteNum is part of. This parameter and the
remaining three parameters are meaningless if ConstrainToWindow=0.
Parameter name in code: pWFSConstrainLeft
Range: integer
Default: 0
ConstrainTop
An integer. Top margin (relative to constraining window).
Parameter name in code: pWFSConstrainTop
Range: integer
Default: 0
ConstrainRight:
An integer. Right margin (relative to constraining window).
Parameter name in code: pWFSConstrainRight
Range: integer
Default: 0
ConstrainBottom:
An integer. Bottom margin (relative to constraining window).
Parameter name in code: pWFSConstrainBottom
Range: integer
Default: 0
EXAMPLES
theScript=wfsAttachDragElement(77, TRUE, TRUE, 0,0,0,0)
The above attaches the "Drag Element"
behavior to sprite 77. Sprite 77 is therefore draggable. The second
parameter being TRUE brings the sprite to front on mousedown. Since
the third parameter is set to TRUE, sprite 77 will be constrained in
its movement within the rectangle defined by the last four parameters
(relative to the window sprite 77 is an element of). Since the last
four parameters are 0,0,0,0, sprite 77 will be constrained to move within
the window or menu that sprite 77 is an element of.
theScript=wfsAttachDragElement(77, TRUE, FALSE, 0,0,0,0)
The above attaches the "Drag Element"
behavior to sprite 77. Sprite 77 is therefore draggable. Since the third
parameter is set to FALSE, sprite 77 will not be constrained in its
movement at all. And, consequently, the last four parameters are without
significance; they could be anything, even unspecified.
theScript=wfsAttachDragElement(77, TRUE, TRUE, 0,0,0,-100)
Same as the first example except the last parameter is -100. This means
that sprite 77 will be draggable down 100 pixels from the bottom of
the window or menu sprite 77 is an element of. Negative values increase
the margins beyond the bounding window. But you still won't be able
to move sprite 77 up, left, or right further than the bounding window
since the first three parameters are 0,0,0.
RETURN VALUE
Returns 0 if theElementSpriteNum is not an integer or is not a reference
to a sprite. Returns a reference to the script, otherwise. So that if
you run
theScript=wfsAttachDragElement(parameters)
and the attachment was successful (ie, the "Drag Element"
behavior exists and there is a sprite in channel elementSpriteNum) then
theScript.pWFSConstrainToWindow tells you the value of pWFSConstrainToWindow,
etc.
wfsAttachOpenAWindow (theElementSpriteNum, OpenAWindowEvent, NameOfManagerToOpen,
OpeningLocation, AbsoluteLocH, AbsoluteLocV)
FUNCTION
You call wfsAttachOpenAWindow to dynamically attach the '7:
Open a Window' behavior to a sprite. The sprite does not have to
be an element of a multi-sprite.
PARAMETERS
theElementSpriteNum:
The spritenum of the sprite to which you want the behavior attached.
OpenAWindowEvent:
The mouse event that opens the window.
Parameter name in code: pWFSOpenAWindowEvent
Range: "mouseEnter", "mouseDown",
"mouseUp", "mouseLeave", "rightMouseDown"
Default: "mouseUp"
NameOfManagerToOpen:
The name (string) of the multi-sprite you want to open.
Parameter name in code: pWFSNameOfManagerToOpen
Range: name (string) of a manager or "Type
the name here"
Default: "Type the name here"
OpeningLocation:
This let's you specify where the window is opened.
Parameter name in code: pWFSOpeningLocation
Range: "Do not move it, just open
it.", "Center it.", "Open it where mouse is.",
"Open at absolute location."
Default: "Do not move it, just open
it."
AbsoluteLocH
If OpeningLocation="Open at absolute location." then AbsoluteLocH
is the x component of the point where the window is opened. This parameter
is only used if OpeningLocation="Open at absolute location."
Parameter name in code: pWFSAbsoluteLocH
Range: #min: 0, #max: (the stageRight -
the stageLeft)
Default: 0
AbsoluteLocV:
If OpeningLocation="Open at absolute location." then AbsoluteLocV
is the y component of the point where the window is opened. This parameter
is only used if OpeningLocation="Open at absolute location."
Parameter name in code: pWFSAbsoluteLocV
Range: #min: 0, #max: (the stageBottom
- the stageTop)
Default: 0
EXAMPLES
theScript=wfsAttachOpenAWindow(9, "mouseUp", "ae", "Center it.", 0,0)
The above attaches the '7: Open a Window'
behavior to sprite 9. On mouseup of sprite 9, the multi-sprite named
"ae" will be opened. "ae" will be centered on the
stage. The last two parameters are irrelevant since we did not make
the fourth parameter "Open at absolute location."
theScript=wfsAttachOpenAWindow(9, "rightMouseDown", \
"ae", "Open it where mouse is.", 0,0)
The above attaches the '7: Open a Window'
behavior to sprite 9. On rightMouseDown (Ctrl+click on Macs) of sprite
9, the multi-sprite named "ae" will be opened. The top left
corner of "ae" will be where the mouse is. The last two parameters
are irrelevant since we did not make the fourth parameter "Open
at absolute location." Since we are using rightMouseDown, you need
to uncheck File>Publish Settings>Shockwave Save>Display Context
Menu in Shockwave or the Shockwave right-click popup menu will be displayed.
wfsAttachCursorControl(theElementSpritenum, TypicalSettings, MouseEnterCursorNum,
MouseDownCursorNum, MouseUpCursorNum, MouseLeaveCursorNum, MouseUpOutsideCursorNum)
FUNCTION
This handler attaches a copy of the "Cursor
Control" behavior to a sprite. The "Cursor Control"
behavior makes the cursor be the specified Director system cursor on
mouse events.
PARAMETERS
theElementSpriteNum:
is the spritenum of the sprite to which you want to attach this behavior.
TypicalSettings:
If TypicalSettings="Clickable" then the cursor will behave
like the sprite is clickable. If TypicalSettings="Drag and Drop"
then the cursor will behave like the sprite is draggable.
Parameter name in code: pWFSTypicalSettings
Range: "Use below settings",
"Clickable", "Drag and Drop"
Default: "Use below settings"
mouseEnterCursorNum:
This is consequential only if you have specified TypicalSettings="Use
below settings". mouseEnterCursorNum is the integer that corresponds
with the cursor image you want on mouseEnter of the sprite to which
the Cursor Control behavior is attached.
Parameter name in code: pWFSMouseEnterDescription
Range: Consult the macromedia
documentation for cursor numbers.
Default: 280 (finger)
MouseDownCursorNum:
Same thing as with mouseEnterCursorNum only concerning mouseDown.
Parameter name in code: pWFSMouseDownDescription
Range: Consult the macromedia
documentation for cursor numbers.
Default: 280 (finger)
MouseUpCursorNum:
Same thing as with mouseEnterCursorNum only concerning mouseUp.
Parameter name in code: pWFSMouseUpDescription
Range: Consult the macromedia
documentation for cursor numbers.
Default: 280 (finger)
MouseLeaveCursorNum:
Same thing as with mouseEnterCursorNum only concerning mouseLeave.
Parameter name in code: pWFSMouseLeaveDescription
Range: Consult the macromedia
documentation for cursor numbers.
Default: -1 (Standard System Arrow)
MouseUpOutsideCursorNum:
Same thing as with mouseEnterCursorNum only concerning mouseUpOutside.
Parameter name in code: pWFSMouseUpOutsideDescription
Range: Consult the macromedia
documentation for cursor numbers.
Default: -1 (Standard System Arrow)
EXAMPLES
theScript=wfsAttachCursorControl(8, "Clickable")
The above attaches the "Cursor Control" behavior to sprite
8 and configures it so that the cursor changes to indicate sprite 8
is clickable.
theScript=wfsAttachCursorControl(8, "Drag and Drop")
The above attaches the "Cursor Control" behavior to sprite
8 and configures it so that the cursor changes to indicate sprite 8
is drag and droppable.
theScript=wfsAttachCursorControl(8, "Use below settings", 302, 302, 302, -1, -1)
The above attaches the Cursor Control behavior to sprite 8. On mouseEnter,
mouseDown, and mouseUp, the cursor is a magnifying glass. On mouseLeave
and mouseUpOutside, it reverts to the standard system cursor.
wfsAttachRollover (theElementSpriteNum, NameOfWindowToOpenAndClose)
FUNCTION
This handler attaches the "Rollover"
behavior to a sprite.
PARAMETERS
theElementSpriteNum:
The spritenum of the sprite to which you want the "Rollover"
behavior attached.
NameOfWindowToOpenAndClose:
This is the (string) name of the window you want opened.
Parameter name in code: pWFSNameOfWindowToOpenAndClose
Range: the name (string) of a multi-sprite
Default: "Type the name here"
EXAMPLES
theScript=wfsAttachRollover(4, "my window")
The above attaches the "Rollover"
behavior to sprite 4. When the mouse enters sprite 4, the window named
"my window" is opened. When the mouse leaves sprite 4, "my
window" is closed.
|
1: prepareMovie
2: Window Manager
3: Window Manager
4: Win/Menu Element
5: Close My Window
6b: Handle
Menu Manager
Menu Manager
Menu Verb
Menu item highlight
