"Menu item highlight" vector

"Menu item highlight" vector image

• What it does
• What to attach to it
• Position in the Score
• Position on the Stage
• Changing the color

What it does

This vector image works in tandem with the "Menu item highlight" behavior and the "Menu Verb" behavior to highlight menu items. The vector image is positioned over or under menu items that are configured to be highlighted in the "Menu Verb" behavior.

You only need this vector image in the Score if you want to highlight menu items. And regardless of how many menu items you configure to be highlighted, you only need one copy of the "Menu item highlight vector" image in the Score.

What to attach to it

Attach a copy of the "Menu item highlight" behavior to this vector image. This is a must if you want to highlight menu items.

Position in the Score

Instantiate this through all the frames in which the menu is instantiated. Put it in any channel you like.

Position on the Stage

It doesn't matter where you position it on the Stage. The "Menu item highlight" behavior makes it invisible until the user mouses into a menu item configured in the "Menu Verb" behavior to be highlighted, and makes it invisible again once the menu item is no longer highlighted.

Changing the color

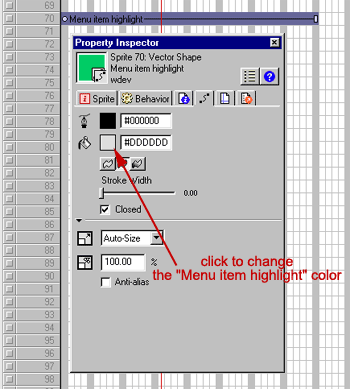

Depending on the color of your menus, you may want to change the color of the "Menu item highlight" vector image. The graphic below shows you how to do this.

1. Right-click in the Score on the "Menu item highlight" sprite.
2. Select "Cast Member Properties" from the pop-up menu. The Property Inspector opens.
3. In the Property Inspector, tab to the Vector tab, as above.
4. Click on the square indicated above to change the "Menu item highlight" color.

The "Menu item highlight" behavior automatically adjusts certain properties of the "Menu item highlight" vector image:

• visibility
• regPoint
• blend
• ink

For more information, see the documentation on the "Menu item highlight" behavior.
